Marsh Stencil Machines

Manual, Electronic & Super Size Systems

Marsh Stencil Cutter Parts List

Use this page to identify replacement parts for Marsh manual stencil cutters and access picture reference views, support documents, and replacement instructions.

This support page is intended for Models R, S, H, and Q.

Stencil Cutter Parts Reference

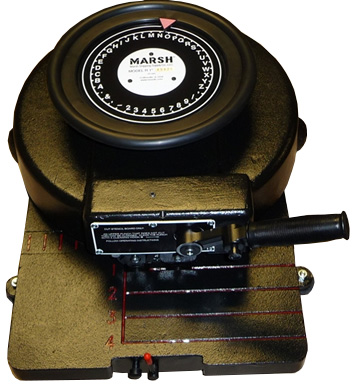

Use the image below as a general reference for Marsh stencil cutter parts. For more detailed breakdowns, open one of the views below to narrow down the exact area of the machine.

Marsh stencil cutter parts diagram

Detailed Parts Views

Name Plate Down

View the machine from the name-plate-down orientation.

Open View

Top Cover

Identify parts located around the top cover area.

Open View

Feed Wheels

Reference feed wheel related parts and assemblies.

Open View

Underside

Use the underside view for lower-machine part identification.

Open View

Support Documents

Owners Manual

Open Owners Manual

Punch & Die Replacement Instructions

Open Replacement Instructions

Common Marsh Stencil Cutter Parts

Below is the current reference list of part numbers and descriptions for Marsh manual stencil cutter support.

  • RP01A-R Cap, hex head (1")
  • RP01A-SHQ Cap, hex head (1/4", 1/2", 3/4")
  • RP01D-SHQ Nut, hex jam
  • RP01PL-H Plate, table (1/2") (Not shown in picture)
  • RP01PL-Q Plate, table (1/4") (Not shown in picture)
  • RP01PL-S Plate, table (3/4") (Not shown in picture)
  • RP01X-H Base, with shaft and plate (1/2")
  • RP01X-Q Base, with shaft and plate (1/4")
  • RP01X-R Base, with center shaft (1")
  • RP01X-S Base, with shaft and plate (3/4")
  • RP02-R Hood (1")
  • RP02-SHQ Hood (1/4", 1/2", 3/4")
  • RP03-R Carrier, Die (1")
  • RP03-SHQ Carrier, Die (1/4", 1/2", 3/4")
  • RP04A Screw, cap head hex
  • RP04-R Carrier punch (1")
  • RP04-SHQ Carrier, punch (1/4", 1/2", 3/4")
  • RP05X-R Holder, punch and shank assy (1")
  • RP05X-SHQ Holder, punch and shank assy (1/4", 1/2", 3/4")
  • RP06B-R Screw, punch (1")
  • RP06B-SHQ Screw, punch (1/4", 1/2", 3/4")
  • RP06C-R Screw, die (1")
  • RP06C-SHQ Screw, die (1/4", 1/2", 3/4")
  • RP07X Wheel assy, hand
  • RP08 Holder, dial
  • RP08B Screw, set square head
  • RP09A Screw, cap hex head
  • RP10 Cam assy, centering
  • RP12-SHQ Link (1/4", 1/2", 3/4")
  • RP12-R Link (1" machine)
  • RP13A Washer, link pin right
  • RP14 Rocker assy
  • RP15 Roller assy, lower feed
  • RP1503B Screw, cap hex head
  • RP1503C Washer
  • RP15C Bar, adjustment
  • RP15D Spacer
  • RP15G Screw, round head slotted
  • RP15N Nut, hex jam
  • RP1611-AR Washer, sprag spring
  • RP16A Eccentric shaft stop pin
  • RP16D Stud, spring
  • RP16E Collar, spring stud
  • RP16G Cap, eccentric shaft handle
  • RP16-R Shaft assy, eccentric (1")
  • RP16S Spring, lower feed roll
  • RP16-SHQ Shaft assy, eccentric (1/4", 1/2", 3/4")
  • RP16W Washer
  • RP17 Button, release shaft
  • RP17S Spring, release button
  • RP18 Pawl, stop
  • RP18A Screw, stop pawl
  • RP18B Pin, release button
  • RP19A Wick, center shaft oil
  • RP19W1 Washer
  • RP19W2 Washer
  • RP20X-R Handle, assy operating (1")
  • RP20X-SHQ Handle, assy operating (1/4", 1/2", 3/4")
  • RP21 Washer
  • RP22 Shaft, handle
  • RP22A Nut, hex
  • RP22B Washer, lock internal tooth
  • RP23A Bushing, feed wheel
  • RP23LB-H Wheel assy, feed left (1/2")
  • RP23LB-Q Wheel assy, feed left (1/4")
  • RP23LB-R Wheel assy, feed left (1")
  • RP23LB-S Wheel assy, feed left (3/4")
  • RP23R Wheel, feed right
  • RP23W Washer, feed wheel
  • RP24 Follower, spacing cam
  • RP25E Stud, spring spacing
  • RP25-H Cam assy, spacing (1/2")
  • RP25-Q Cam assy, spacing (1/4")
  • RP25-R Cam assy, spacing (1")
  • RP25S Spring, spacing finger
  • RP25-S Cam assy, spacing (3/4")
  • RP26S-R Spring, punch (1")
  • RP26S-SHQ Spring, punch (1/4", 1/2", 3/4")
  • RP26W-R Washer, rubber (1")
  • RP26W-SHQ Washer, rubber (1/4", 1/2", 3/4")
  • RP27 Retainer, spring
  • RP27944 Grip, Handle 7/8" Flangeless
  • RP28 Rocker assy, centering
  • RP29 Stud, centering rocker
  • RP30S Spring, centering arm
  • RP30X-R Arm assy, centering (1")
  • RP30X-SHQ Arm assy, centering (1/4", 1/2", 3/4")
  • RP31 Plunger assy
  • RP3157 Ring, lock
  • RP32 Dial blank, manual
  • RP32A Screw, phillips truss head
  • RP33 Stripper assy (1/4", 1/2", 3/4", 1")
  • RP33101 Shaft, center (1/4", 1/2", 3/4")
  • RP35A Arm liner, assy centering
  • RP35B O-ring
  • RP35SW Washer
  • RP35W Washer
  • RP36 Bushing, spacing cam
  • RP36B Screw, cap hex head
  • RP37 Stud, spring
  • RP37S Spring, handle
  • RP38 Screw, slot flat head
  • RP38A Nut
  • RP38B Washer, lock internal tooth
  • RP42 Screw, set socket flat
  • RP43 Cover plate, front
  • RP43A Screw, phillips pan head
  • RP44 Stop, spacing
  • RP47 Screw, set square head
  • RP47A Nut, hex jam
  • RP47B Washer, lock integral tooth
  • RP48-R Screw, set (1")
  • RP48-SHQ Screw, set (1/4", 1/2", 3/4")
  • RP51N Nut
  • RP77 Foot, rubber
  • RP78-R Washer, felt (1")
  • RP78-SHQ Washer, felt (1/4", 1/2", 3/4")
  • RP79 Washer, felt
  • RPH5DP Punch and die - set of 40 1/2" characters
  • RPJ500-0011-008 Screw, phillips flat head (1/4", 1/2", 3/4")
  • RPQ5DP Punch and die - set of 40 1/4" characters
  • RPR5DP Punch and die - set of 40 1" characters
  • RPS5DP Punch and die - set of 40 3/4" characters
  • RPTC19 Washer

Need Help Identifying a Marsh Stencil Cutter Part?

If you are not sure which part you need, contact us and reference the machine model and the section of the parts list you are viewing.
