Underside Parts View
Manual Parts > Underside Parts View
Use this page to identify components located on the underside of Marsh manual stencil cutters.
This reference applies to Models R, S, H, and Q.
Other Parts Views

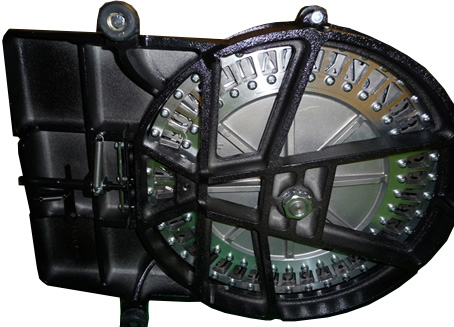

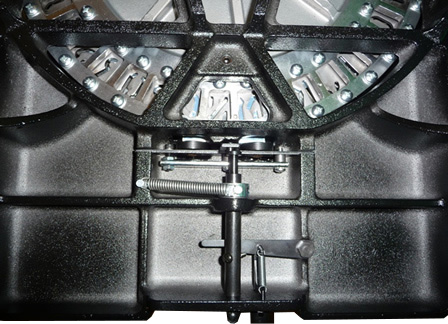

Underside Reference
Use these images to identify underside components and compare what you see on your machine to the parts list below.
Need another view? Go to Main Page, Name Plate Down, Top Cover, or Feed Wheels.
Underside Parts List
- RP13A Washer, link pin right
- RP15 Roller assy, lower feed
- RP15C Bar, adjustment
- RP15D Spacer
- RP16A Eccentric shaft stop pin
- RP16D Stud, spring
- RP16E Collar, spring stud
- RP16S Spring, lower feed roll
- RP18 Pawl, stop
- RP18A Screw, stop pawl
- RP18B Pin, release button
- RP19A Wick, center shaft oil
- RP19W1 Washer
- RP19W2 Washer
- RP23A Bushing, feed wheel
- RP23W Washer, feed wheel
- RP24 Follower, spacing cam
- RP25E Stud, spring spacing
- RP26S-R Spring, punch (1")
- RP26S-SHQ Spring, punch (1/4", 1/2", 3/4")
- RP27 Retainer, spring
- RP29 Stud, centering rocker
- RP30S Spring, centering arm
- RP36 Bushing, spacing cam
- RP37 Stud, spring
- RP37S Spring, handle
- RP44 Stop, spacing
Need Help Identifying a Part?
If you are not sure which part you need, contact us and reference this underside view along with the machine model.
