Top Cover Parts View
Manual Parts > Top Cover Parts View
Use this page to identify parts located in the top cover area on Marsh manual stencil cutters.
This reference applies to Models R, S, H, and Q.
Other Parts Views
Top Cover Reference

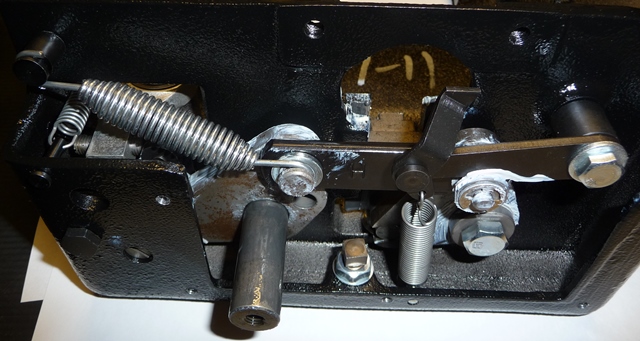

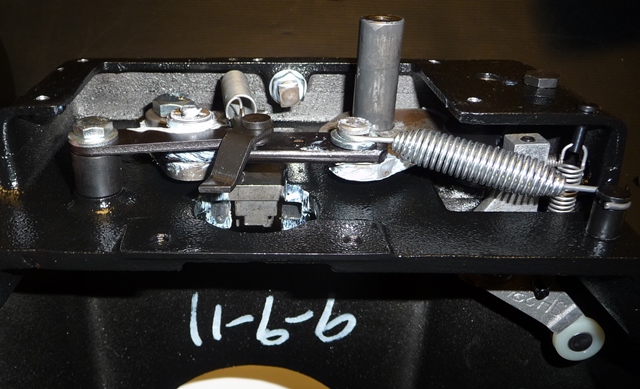

Use these images to identify parts in the top cover area and compare what you see on your machine to the listed part numbers below.
Need another view? Go to Main Page, Name Plate Down, Feed Wheels, or Underside.
Top Cover Parts List
- RP02-R Hood (1")
- RP02-SHQ Hood (1/4", 1/2", 3/4")
- RP12-SHQ Link (1/4", 1/2", 3/4")
- RP12-R Link (1" machine)
- RP14 Rocker assy
- RP22 Shaft, handle
- RP24 Follower, spacing cam
- RP25-H Cam assy, spacing (1/2")
- RP25-Q Cam assy, spacing (1/4")
- RP25-R Cam assy, spacing (1")
- RP25S Spring, spacing finger
- RP25-S Cam assy, spacing (3/4")
- RP30S Spring, centering arm
- RP30X-R Arm assy, centering (1")
- RP30X-SHQ Arm assy, centering (1/4", 1/2", 3/4")
- RP31 Plunger assy
- RP36 Bushing, spacing cam
- RP37 Stud, spring
- RP47 Screw, set square head
- RP47A Nut, hex jam
- RP47B Washer, lock integral tooth
Need Help Identifying a Part?
If you are not sure which part you need, contact us and reference this Top Cover view along with the machine model.
