Name Plate Down Parts View
Manual Parts > Name Plate Down Parts View
Use this page to identify parts visible from the name-plate-down orientation on Marsh manual stencil cutters.
This reference applies to Models R, S, H, and Q.
Other Parts Views

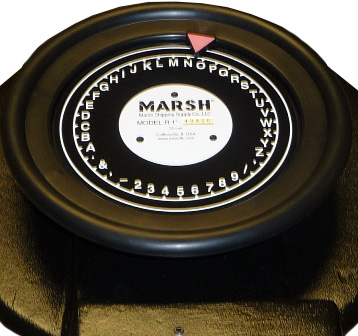

Name Plate Down Reference

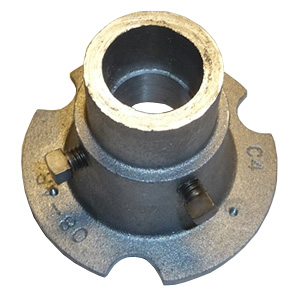

Remove the hand wheel and top cover to find the punch carrier wheel.
Need another view? Go to Main Page, Top Cover, Feed Wheels, or Underside.
Name Plate Down Parts List
- RP02-R Hood (1")
- RP02-SHQ Hood (1/4", 1/2", 3/4")
- RP03-R Carrier, Die (1")
- RP03-SHQ Carrier, Die (1/4", 1/2", 3/4")
- RP04A Screw, cap head hex
- RP04-R Carrier, punch (1")
- RP04-SHQ Carrier, punch (1/4", 1/2", 3/4")
- RP05X-R Holder, punch and shank assy (1")
- RP05X-SHQ Holder, punch and shank assy (1/4", 1/2", 3/4")
- RP06B-R Screw, punch (1")
- RP06B-SHQ Screw, punch (1/4", 1/2", 3/4")
- RP06C-R Screw, die (1")
- RP06C-SHQ Screw, die (1/4", 1/2", 3/4")
- RP07X Wheel assy, hand
- RP08 Holder, dial
- RP08B Screw, set square head
- RP1503C Washer
- RP26S-R Spring, punch (1")
- RP26S-SHQ Spring, punch (1/4", 1/2", 3/4")
- RP26W-R Washer, rubber (1")
- RP26W-SHQ Washer, rubber (1/4", 1/2", 3/4")
- RP27 Retainer, spring
- RP32 Dial blank, manual
- RP32A Screw, phillips truss head
- RP78-R Washer, felt (1")
- RP78-SHQ Washer, felt (1/4", 1/2", 3/4")
- RP79 Washer, felt
- RPH5DP Punch and die - set of 40 1/2" characters
- RPQ5DP Punch and die - set of 40 1/4" characters
- RPR5DP Punch and die - set of 40 1" characters
- RPS5DP Punch and die - set of 40 3/4" characters
Cleaning Hook
180P-RPCHOOK Cleaning Hook
Need Help Identifying a Part?
If you are not sure which part you need, contact us and reference this Name Plate Down view along with the machine model.
